Product description
“A Perfect Solution For Power Sharing”

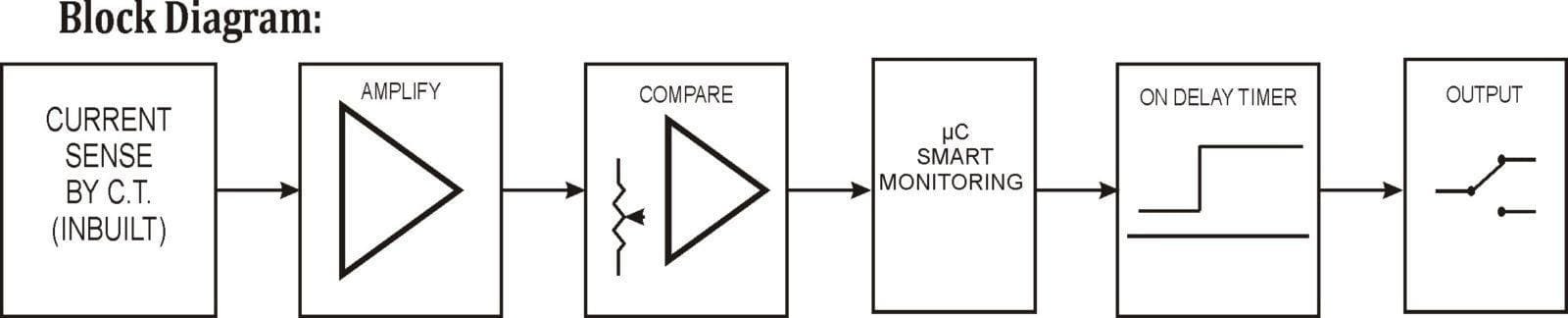

Smart Load Limiter is a high-precision micro-controller-based device for efficient distribution of power. The Relay continuously monitors the current passing to the load, when the load exceeds the set limit it actuates the trip circuit.

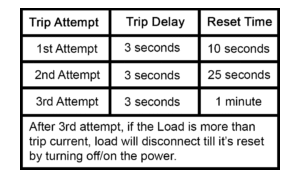

The auto reset function then re-checks the current smartly as per the overload condition by connecting the load, if the current falls within the set limit the line is restored, otherwise it continues to check the current in intervals
Specification
| Aux: | : 240 V. AC +/- 20 % |
| Trip current | : 0.2 A-5 A(Factory Settable) |
| Max Load | : 7A AC (Factory Settable) |
| Out put | : 1 CO Direct Phase Out. |
| Sensing | : In-built CT |
| Indication | : LED (bi-color) |
| Green | : Healthy |
| Red | : Over Load |
| Mounting | : Screw / Inside Panel |
| Enclosure | : ABS Molded |
