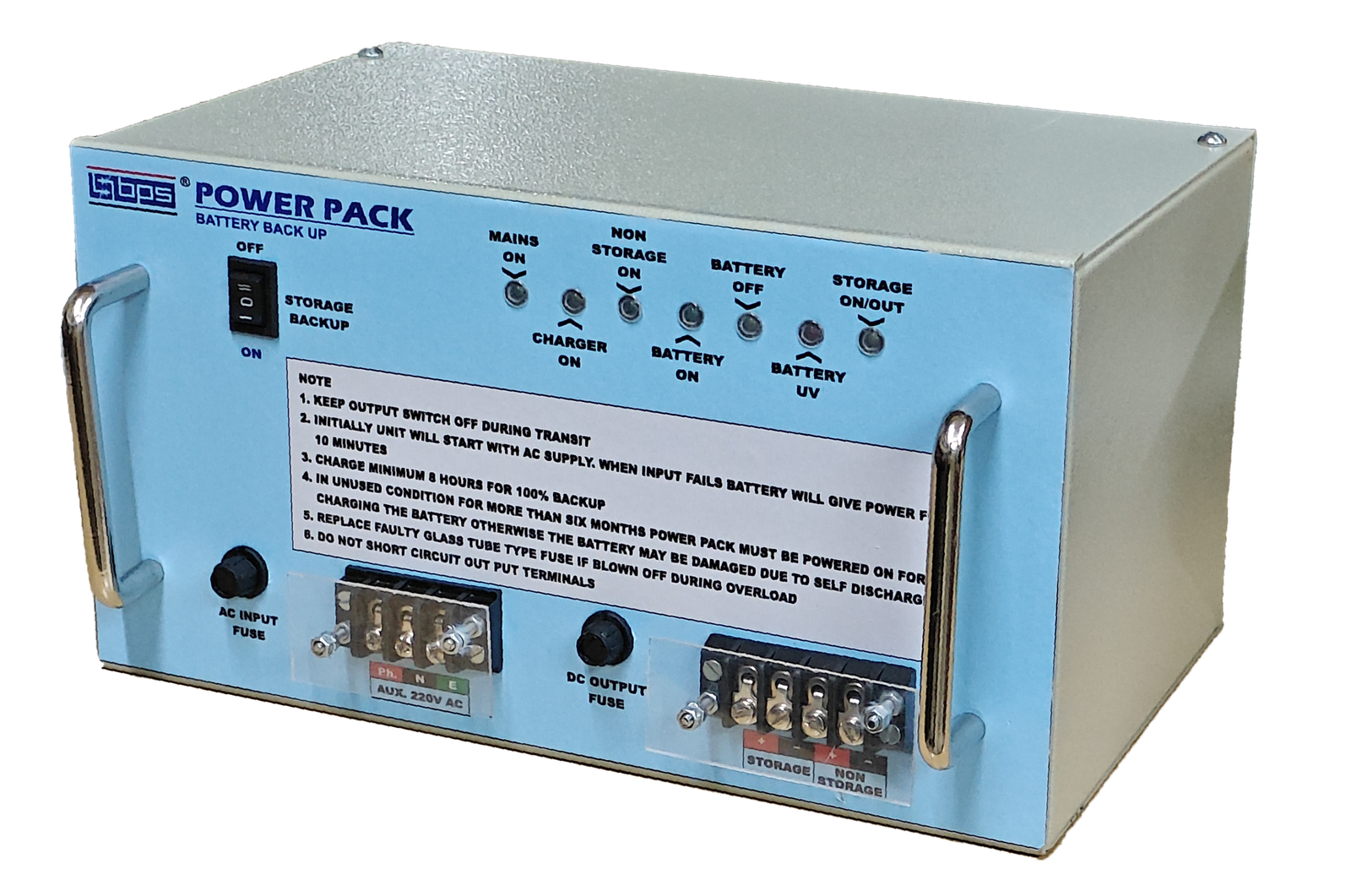

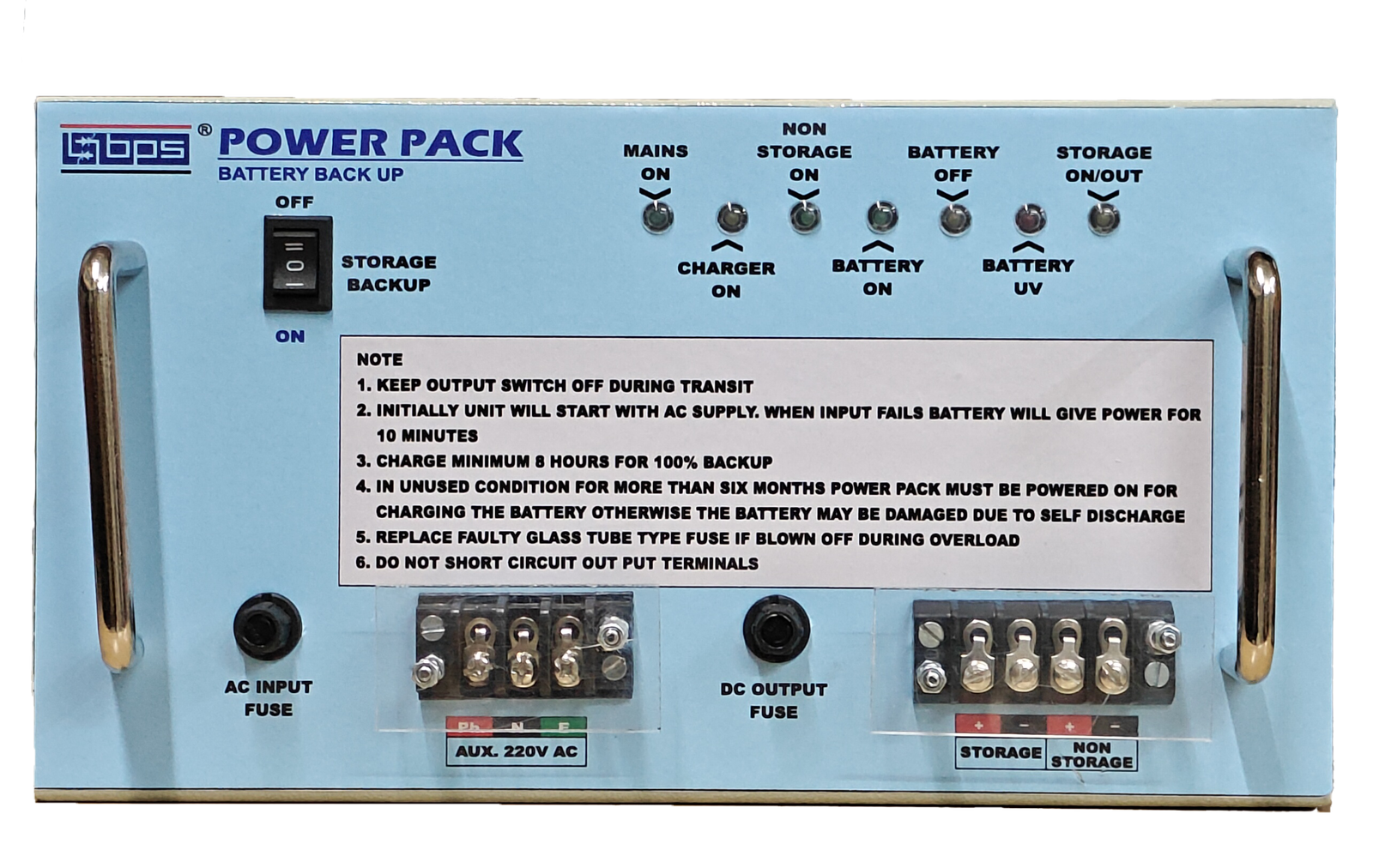

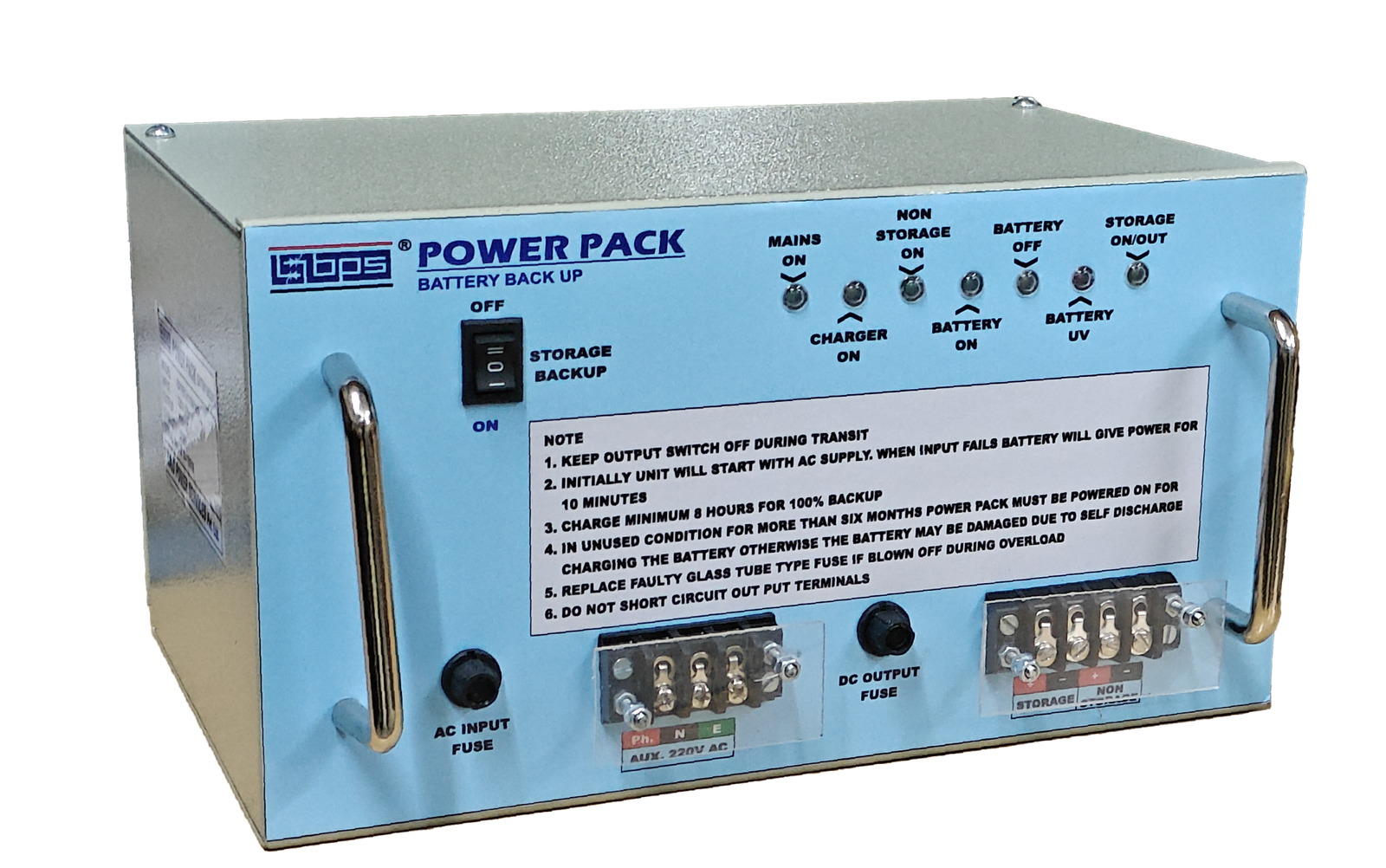

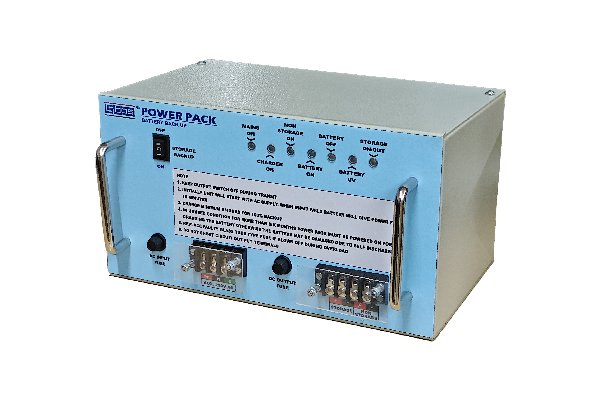

Product description
Application:
The Power Pack is used to supply DC axillary supply to the Trip / Close coil of the Circuit breakers when AC input is not available. DC Power Pack with Battery Back Up is used as a power source for VCB panels in sub-stations where station battery supply is not available.
Function:
BPS Power Packs has three sections,
a) Regulated DC source:
During Mains on, SMPS type regulated terminates DC source to power aux. supply to the annunciator, indicting lamps, instruments,
b) DC-DC converter:
During the Mains Off condition, the DC-DC converter is activated which converts 12 V to 110/30/24 V as a backup supply.
c) Automatic battery charger:
During Mains On and when the battery needs charging, it charges the built-in 12 V SMF battery.
There are two sets of outputs of the DC Power Pack with Battery backup. One output is for stored energy and the other is for non-stored. Stored output can be used when the AC input is off. Non-stored output is available as long as AC input is present.
Technical Specifications:
| Input | : 230 V AC 1 Ph. / 110 V AC 3 Ph. |
| Input current | : Less than 25 VA during charging |
| (without output load) | |
| Output-Mains On | |
| : 110/30/24 V DC | |
| : 100 W +/-2% Continues | |
| : Impulse 450W(250mSec.) | |
| Output-Mains Off | |
| : 100 W +/-2% Continues | |
| : impulse 450W (250mSec.) | |
| Battery | |
| Indicators | : Mains On, Charger On, |
| Over Load, Back-up On/ Off | |
| Battery On, Battery Under Volt | |
| Protections | : Battery Over Charging, |
| Battery under Volt, Over Load |
